Expansion module, SDI2 Bosch B299
Expansion module, SDI2 Bosch B299
Couldn't load pickup availability
Product Overview

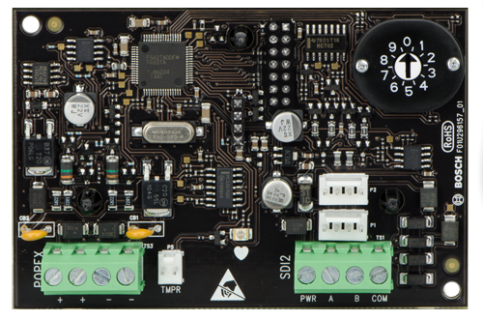

The B299 POPEX Module is an SDI2 compatible device. The module communicates to the control panel over the SDI2 bus, and provides support for up to 100 POPIT (Point Of Protection Input Transponder) devices. This occurs over a single expansion loop using two pairs of terminals.
System overview
Each module installs in the control panel enclosure or in an adjacent approved enclosure. Future system expansion is very economical as the module supports zone expansion through supporting D9127U/T POPIT modules and POPIT'ed detectors. The POPIT modules can be placed anywhere along the two-wire data expansion loop from the module.
Main Features
- Provides point identification for up to 100 connected addressable initiating devices using POPITs
- Supervises wiring to devices for circuit integrity
- Expands the number of points in the system
- Compact size
- Interconnect wiring connectors for easy installation
